Compressed Air Outlet Diffuser for Even Airflow and Stable Pressure – GKQ-01

Name: Compressed Air Outlet Diffuser for Even Airflow and Stable Pressure GKQ01
Brand: Zetron
Price: 200 USD

Brand Name : Zetron

Certification : CE Atex

Place of Origin : China

MOQ : 1

Price : 200~10000USD

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 999

Contact Now

Compressed Air Outlet Diffuser for Even Airflow and Stable Pressure – GKQ-01

Product Specifications

High pressure range	0.1～1.0MPa;
Guaranteed pressure resistance	1.0Mpa;
Operating environment	Temperature: 0～50℃, Humidity: 10～90%;
Output flow range	0-100L/min, set pressure range: 0.005Mpa to 0.2Mpa;
High pressure port diameter	φ6/8/10/12;
Counter port diameter	φ10 (2.83L or 28.3L), airborne bacteria sampler sampling port: φ10;
Airborne bacteria sampler sampling horn	φ10, material: aluminum alloy;
Cavity working pressure	0-500Pa, internal passages are all made of stainless steel;
Display power supply	4 AA batteries;
Dimensions	26021060 mm (LWD);
Weight	0.4Kg

Overview

A compact high-pressure gas diffuser designed to reduce compressed air or inert gases to stable, low-pressure flow for accurate particle and microbial sampling. Compatible with airborne particle counters and biological air samplers, ideal for ISO 8573 compressed air quality testing in cleanroom and pharmaceutical environments.

Application

Compressed Air Outlet Diffuser for Even Airflow and Stable Pressure – GKQ-01

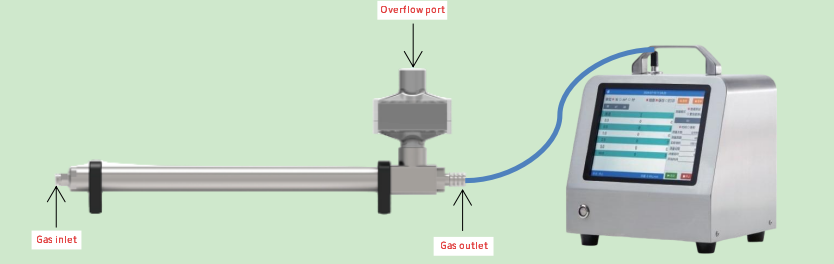

Compressed gas is depressurized to atmospheric pressure by a high-pressure gas diffuser and then transported to the downstream sampling/detection device for sampling or detection.
